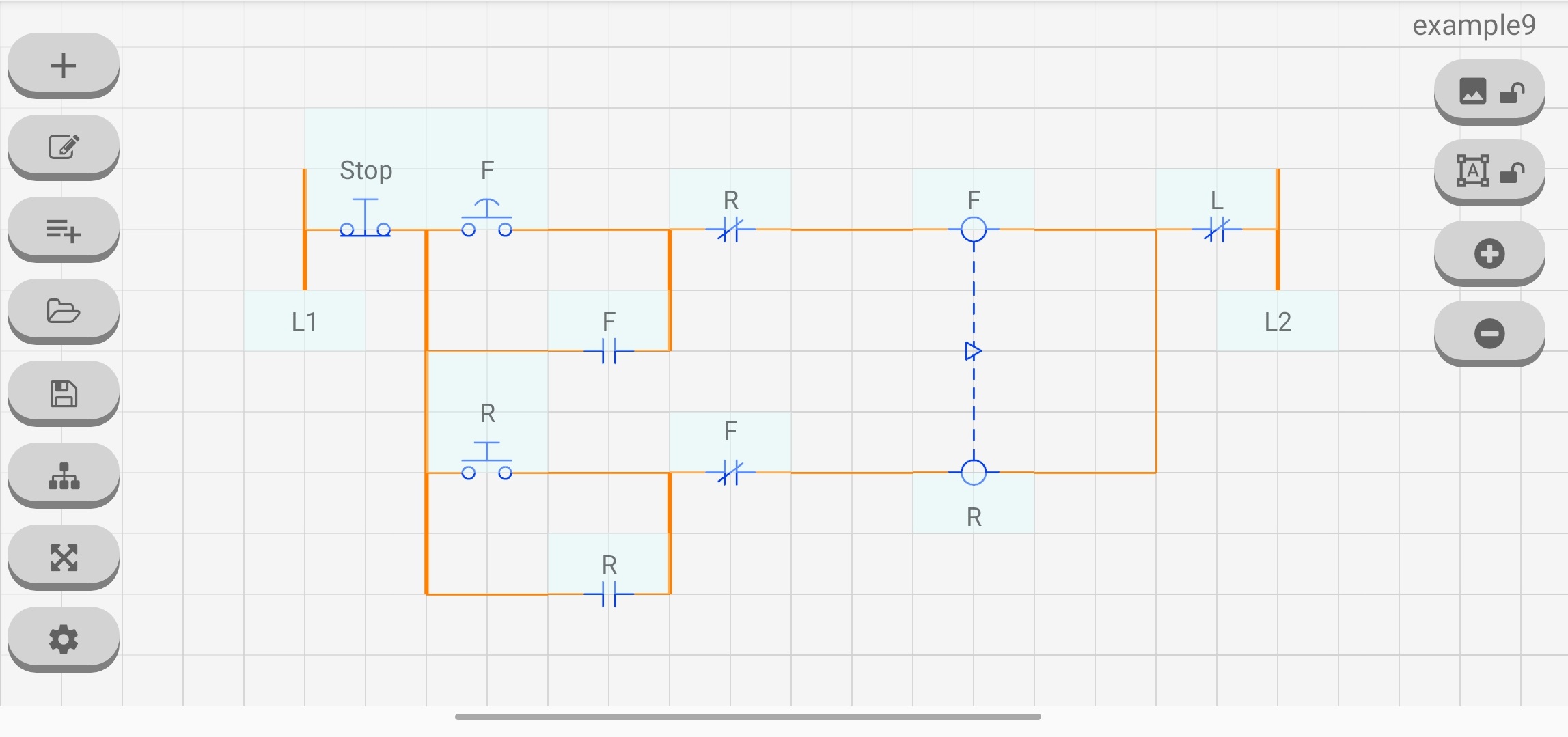

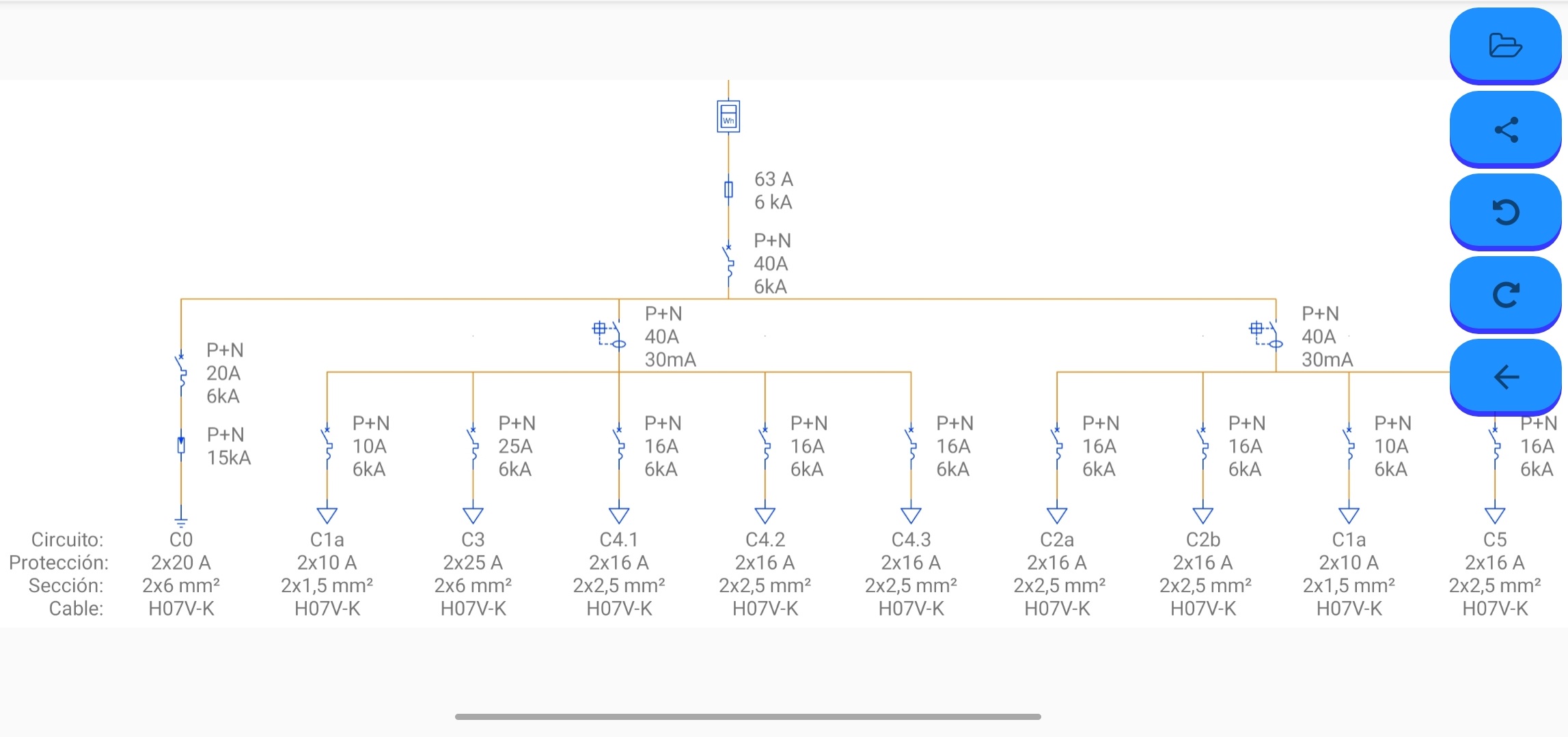

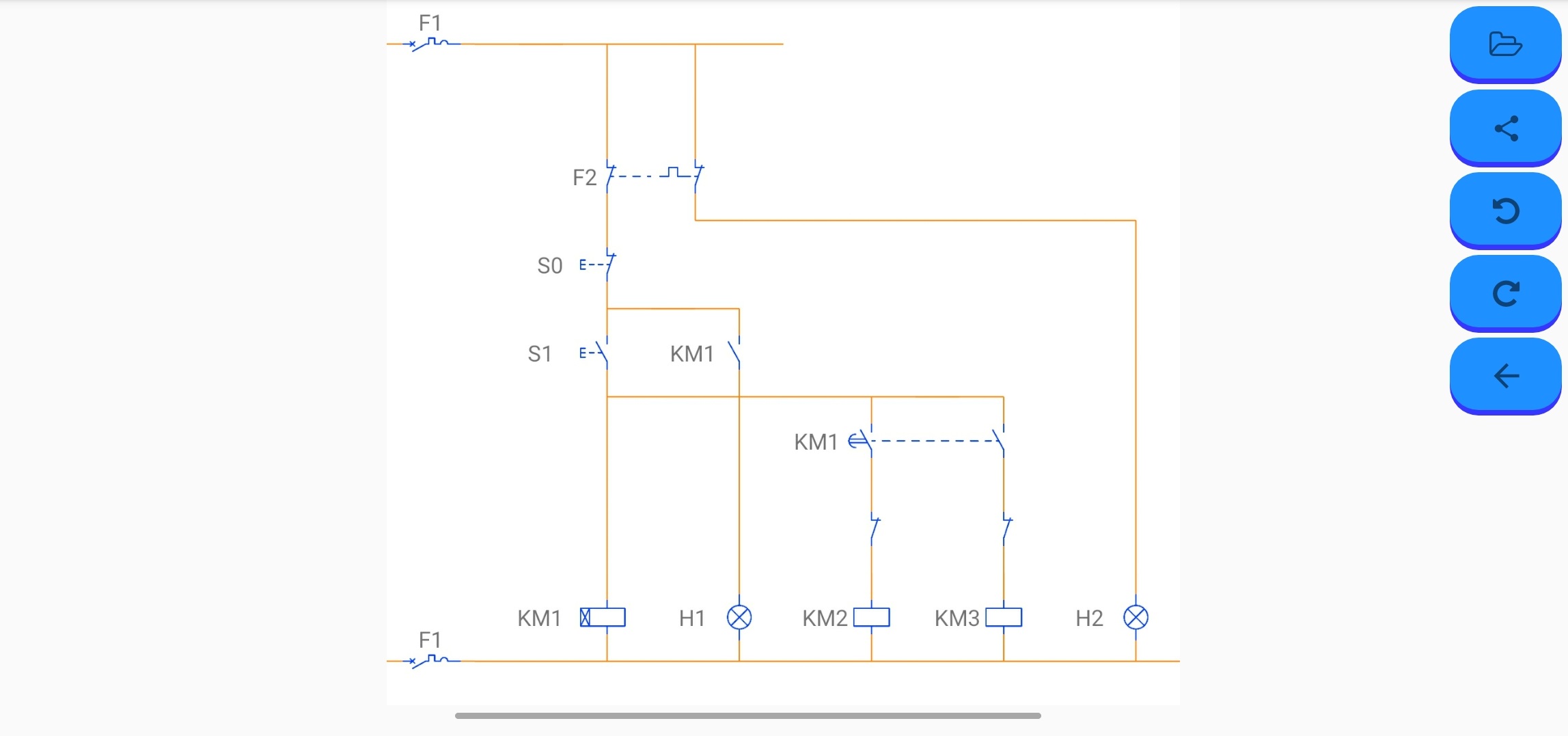

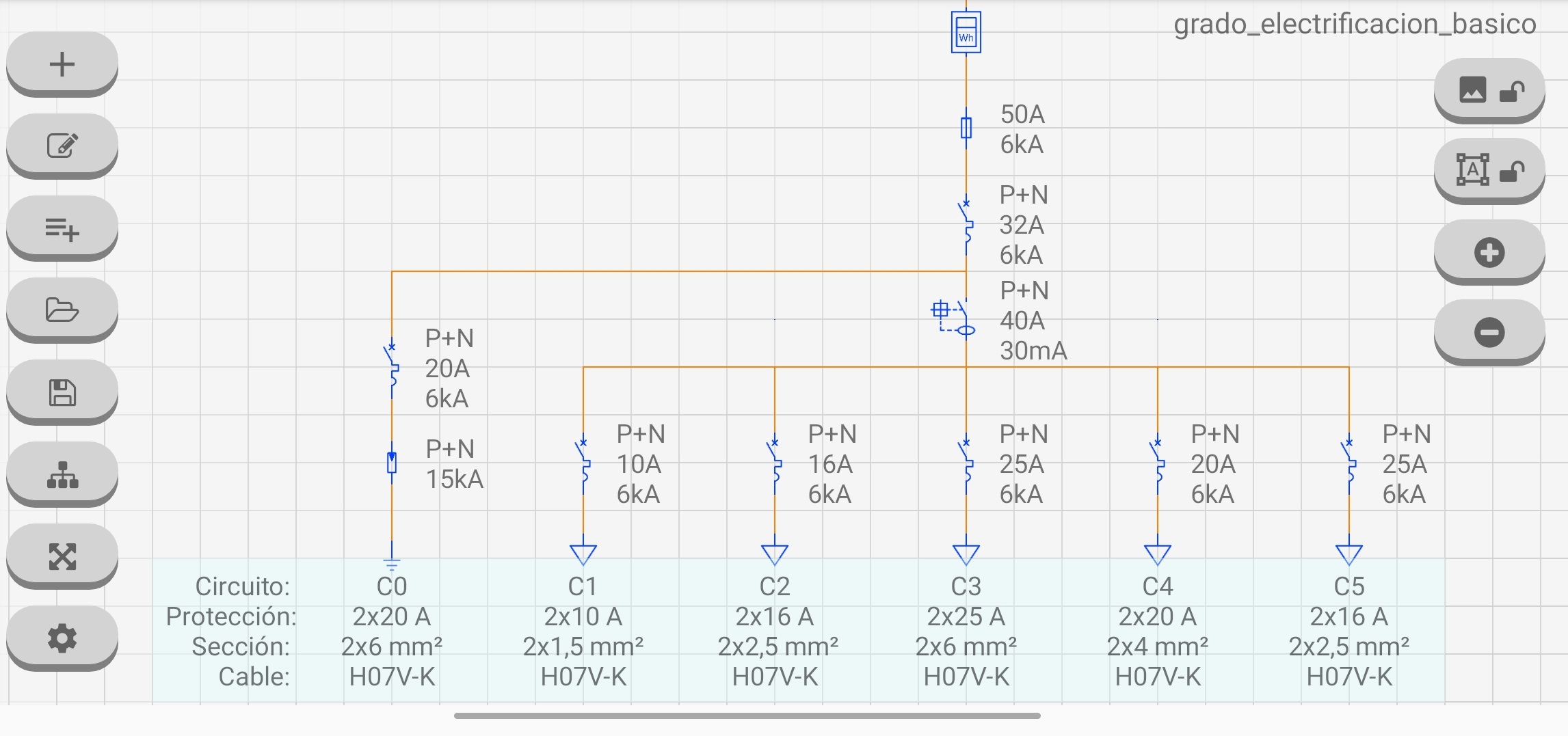

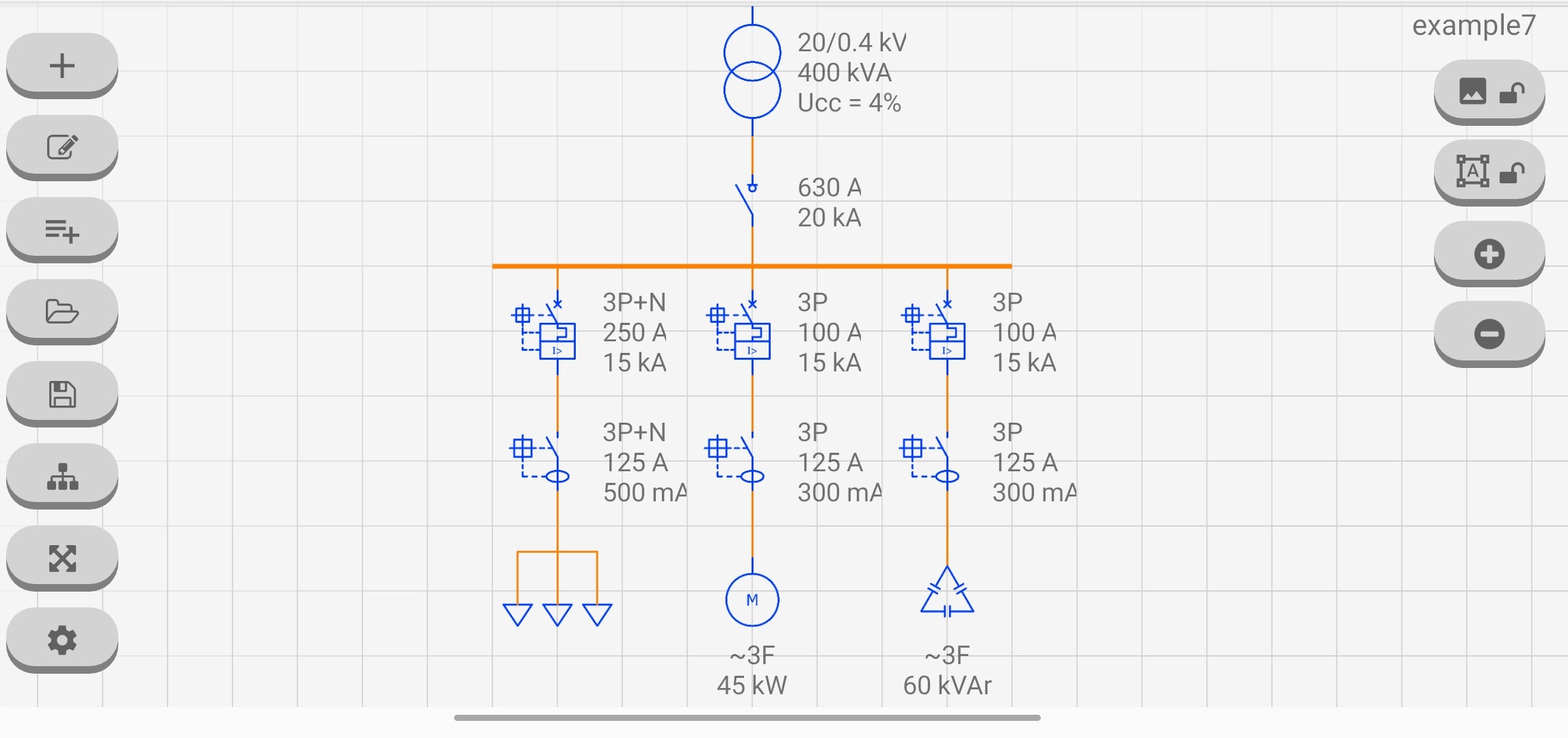

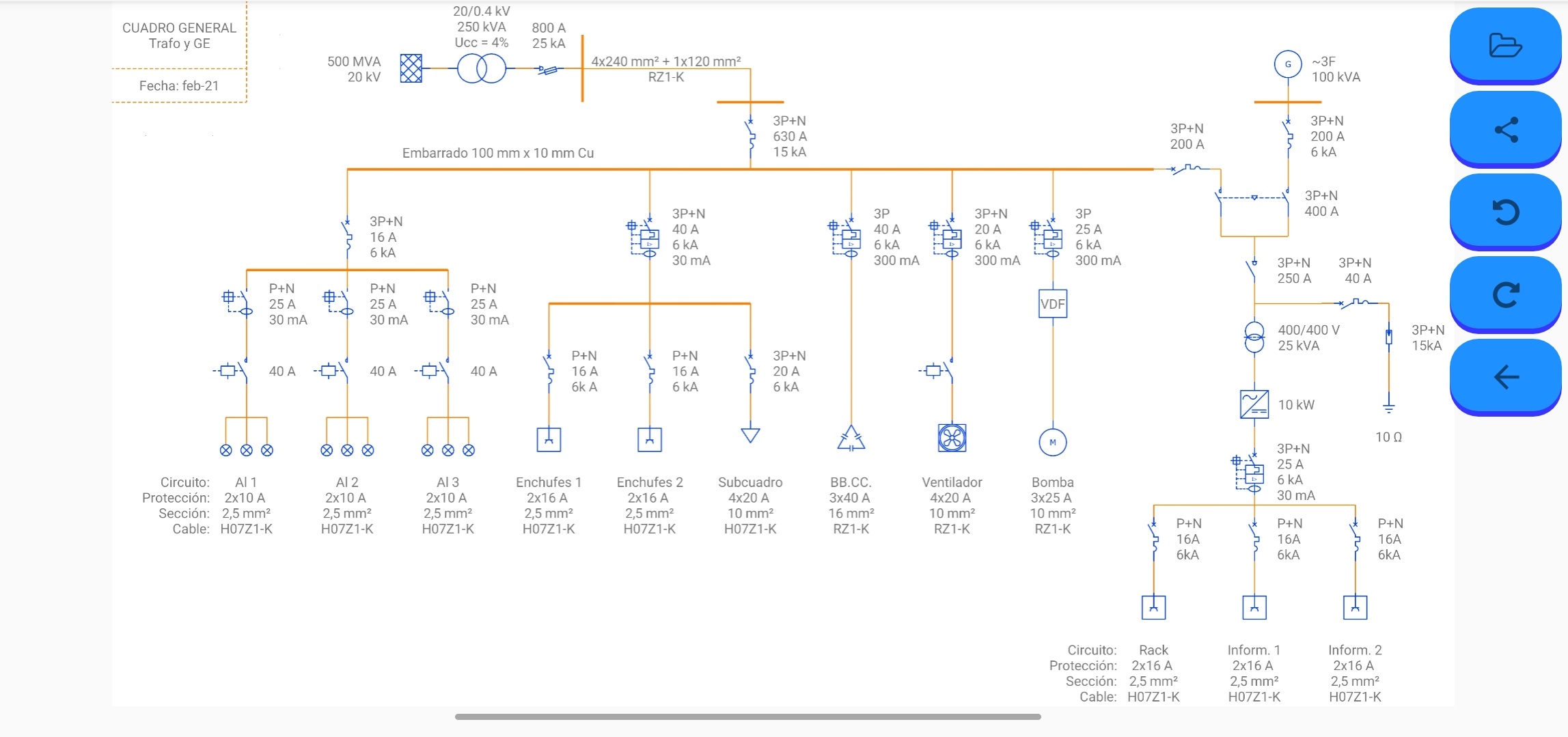

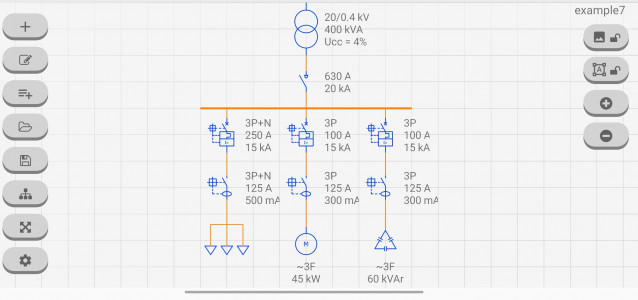

This tool will allow you to create your own one-line diagrams quickly and easily. Simply select the symbol you want to use and drag it to the desired position.

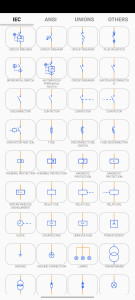

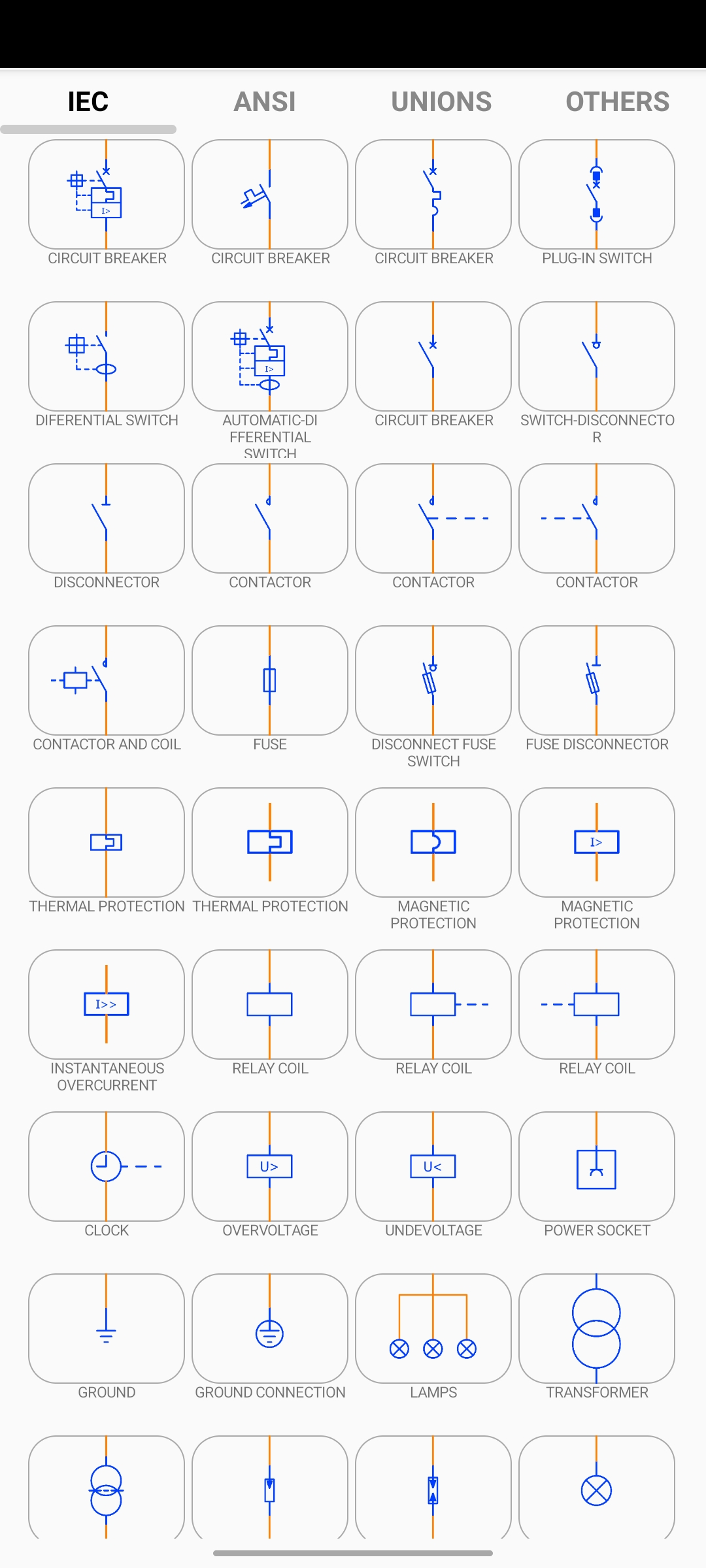

The most commonly used symbols are integrated (IEC, ANSI standards):
- Circuit breakers
- Fuses
- Differentials
- Contacts
- Engines
- Generators
- Electrical outlets
- Lamps
- Grounding
- Active and reactive energy meter
- Current and voltage transformers
...and much more
* Do you want to translate (no english) the symbol texts and receive a coupon to access the payment functions? Contact us!
* More examples: https://drive.google.com/drive/folders/15vTwFvjtu311lSEbYJLaqUfp_pyEwEDt?usp=sharing
* Videos:
https://www.youtube.com/watch?v=TpQIjUYVLSw
https://youtu.be/NxWWA50dKO4
